PRODUCTS / 01

Complete Solar Kits

Plug-and-play systems that arrive on one pallet: panels, hybrid inverter, battery, mounting and cabling — matched, tested and labelled by installation step.

Power

1 – 20 kWp

Daily yield

4 – 5 kWh / kWp

Battery

2.4 – 15 kWh LFP

Warranty

25 yr panel

SPECIFICATIONS

System size

1 – 20 kWp, expandable in 1 kWp steps

Daily generation

≈ 4 – 5 kWh per kWp per day (4–5 peak-sun hours)

Battery

2.4 – 15 kWh LiFePO4, 48 V, 6,000 cycles

Inverter

Hybrid or off-grid, 1 – 8 kW, pure sine wave

Suitable loads

Fridge, LED lighting, TV, laptop, fans, water pump, small AC (sized per kit)

Mounting

Roof, ground or RV surface, hot-dip galvanised

Included

Panels, inverter, battery, mounting, cable, MC4, fuses, monitor

Warranty

25 yr panel · 10 yr inverter · 10 yr battery

Certification

CE · IEC 61215 · IEC 61730

WHAT’S IN THE BOX

Every kit ships complete

Solar panels — mono PERC, 400–620 W each

Hybrid / off-grid inverter with MPPT

LiFePO4 battery 2.4–15 kWh + BMS

Roof or ground mounting rails, brackets, clamps

Solar cable 4/6 mm² + MC4 connectors (pre-crimped)

DC fuses, breaker, surge protection, busbar

WiFi monitoring module + CT clamp

Installation guide, wiring diagram and labelling kit

In the range

Each kit can be ordered on its own or as a matched set.

Off-Grid Solar Kits

Panels, inverter, battery and mounting on one pallet.

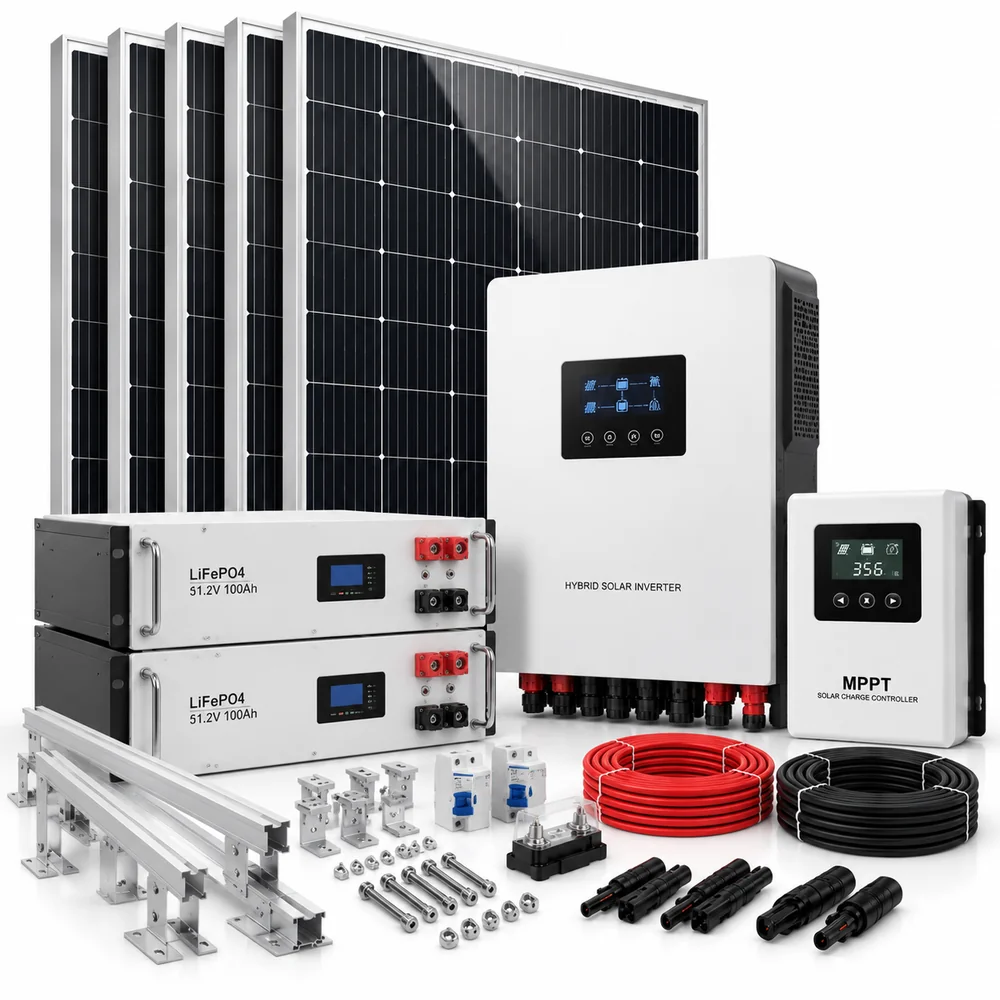

Hybrid Solar Kits

Grid-tied with battery backup and seamless switch-over.

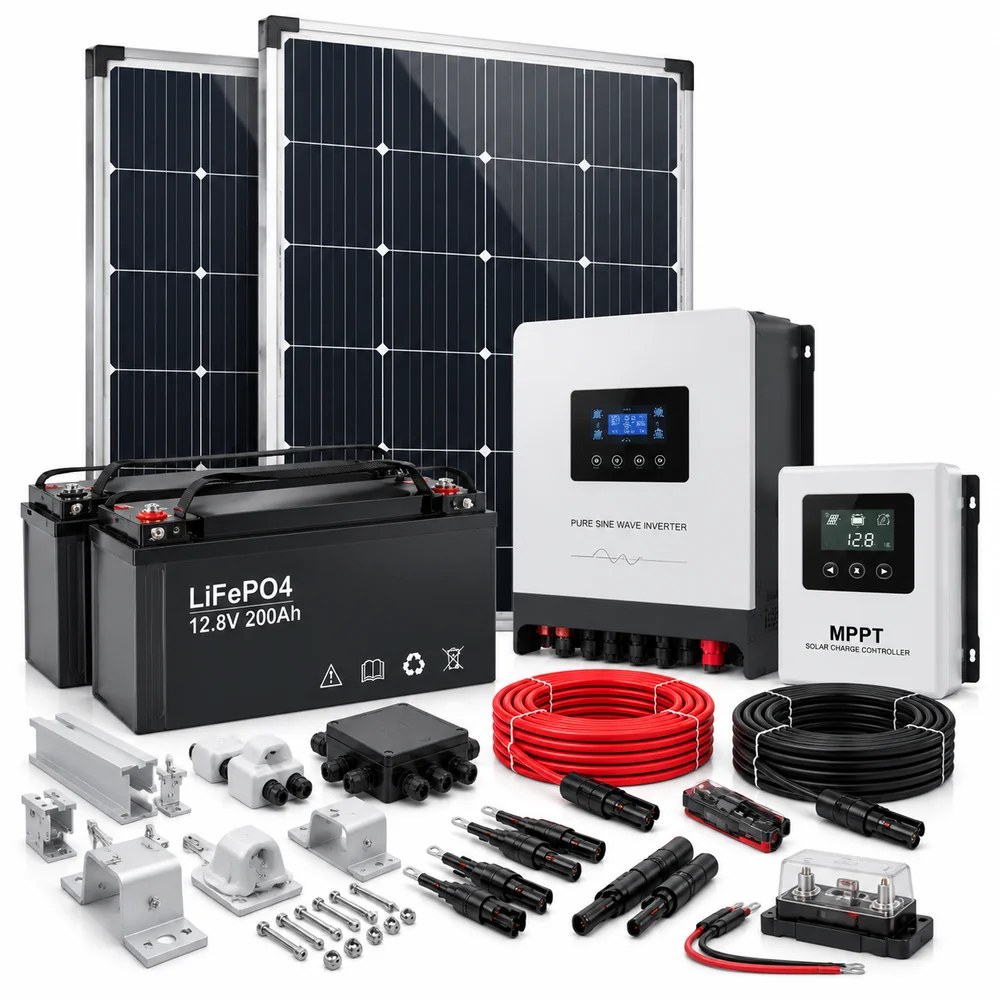

RV & Marine Solar Kits

Flexible panels and controllers for vans and boats.

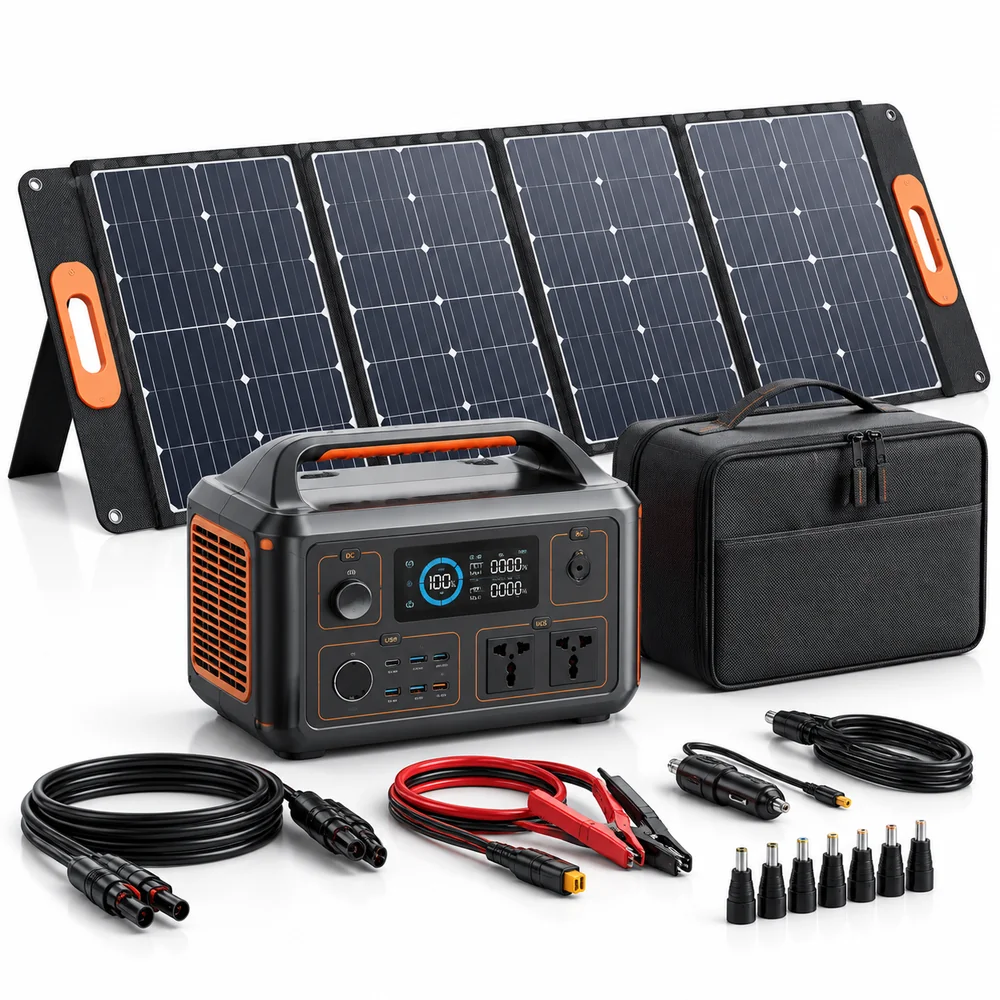

Portable Solar Kits

Folding panel plus power station in one case.

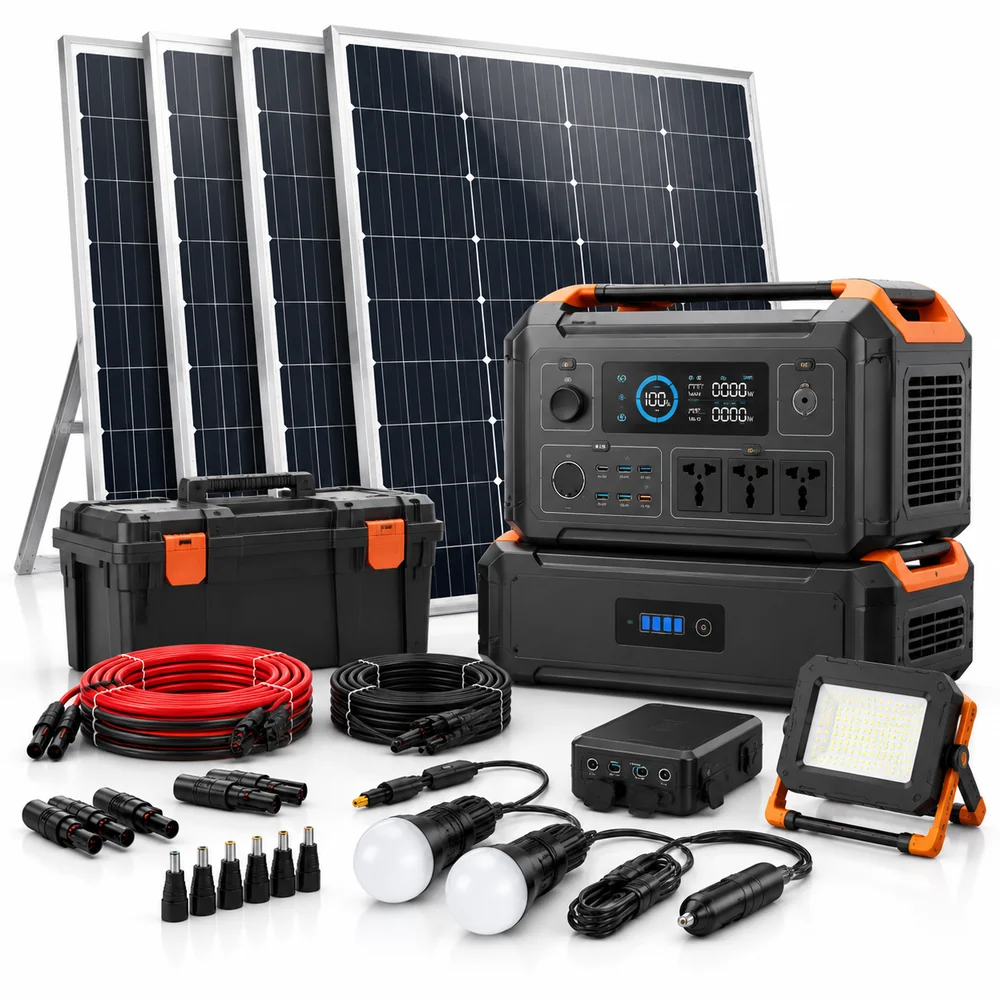

Emergency Backup Solar Kits

Keeps lights, fridge and router alive when the grid drops.

INSTALLATION

Four steps to first power

Mount the rails and panels on the chosen surface and torque to spec.

Run DC cable through the gland and terminate MC4 to the inverter input.

Land the battery on the wall bracket, connect BMS coms and DC breaker.

Power on, set the country grid code, pair the app and log first-day yield.

Wiring diagrams, mounting jigs and the step-by-step install video are supplied with every order — or ask us and we will send the file directly.

Need the numbers for a kit?

Send the load profile and the site country. You get a matched bill of materials, a landed price and a delivery date in one reply.
